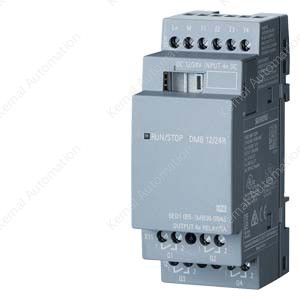

LOGO! DM8 12/24R, EXP. MODULE PU/I/O: 12, 24V/12V/24V/RELAIS, 2TE, 4 DI/4 DO FOR LOGO! 8

Installation type/mounting

Mounting

on 35 mm DIN rail, 2 spacing units wide

Supply voltage

12 V DC

Yes

24 V DC

Yes

permissible range, lower limit (DC)

10.8 V

permissible range, upper limit (DC)

28.8 V

Digital inputs

Number of digital inputs

4

Input voltage

● Type of input voltage

DC

● for signal "0"

< 5 V DC

Input current

● for signal "0", max. (permissible quiescent current)

0.88 mA

● for signal "1", typ.

4.2 mA

Input delay (for rated value of input voltage)

for standard inputs

— at "0" to "1", max.

1.5 ms

— at "1" to "0", max.

1.5 ms

Digital outputs

Number of digital outputs

4; Relays

short-circuit protection

No

Controlling a digital input

Yes

Switching capacity of the outputs

● Lamp load, max.

1 000 W

Output current

● for signal "1" rated value

5 A

Parallel switching of 2 outputs

● for increased power

No

Switching frequency

● with resistive load, max.

2 Hz

● with inductive load, max.

0.5 Hz

● mechanical, max.

10 Hz

Relay outputs

Switching capacity of contacts

— with inductive load, max.

3 A

— with resistive load, max.

5 A

EMC

Emission of radio interference acc. to EN 55 011

● Limit class B, for use in residential areas

Yes

Degree and class of protection

Degree of protection to EN 60529

● IP20

Yes

Standards, approvals, certificates

CSA approval

Yes

UL approval

Yes

FM approval

Yes

Developed in accordance with IEC 61131

Yes

Marine approval

● Marine approval

Yes

Ambient conditions

Operating temperature

● Min.

0 °C

● max.

55 °C

Dimensions

Width

35.5 mm

Height

90 mm

Depth

58 mm
